Tutorial 6: Robot Models — resolve_urdf & Model Catalog

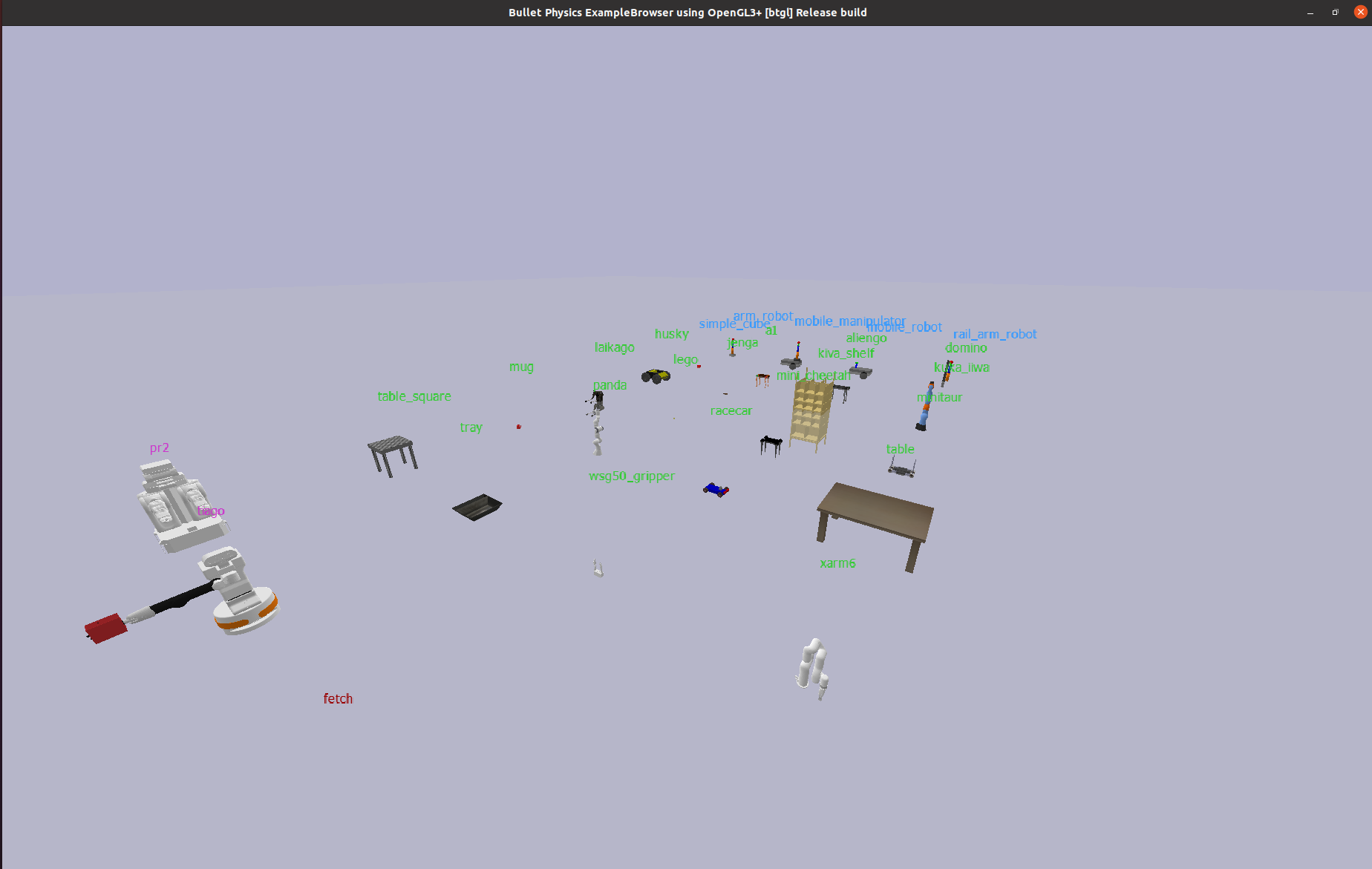

Model Catalog

Source files: examples/models/

This tutorial shows how to load robots by name instead of by file path, browse the model catalog, and inspect robot capabilities automatically.

What you’ll learn:

Resolving a model name to a URDF path with resolve_urdf()
How Agent.from_urdf() accepts model names directly
Auto-detecting robot type, joints, and EE with auto_detect_profile()
Listing all available models with list_all_models()
Using third-party models from pybullet_data and robot_descriptions

No prerequisites — this tutorial is self-contained and can be read at any point.

1. Loading Robots by Name

Traditionally you pass a file path to Agent.from_urdf():

agent = Agent.from_urdf(
    urdf_path="robots/arm_robot.urdf",
    pose=Pose.from_xyz(0, 0, 0),
    sim_core=sim,
)

With model name resolution, you can simply pass a name:

agent = Agent.from_urdf(
    urdf_path="panda",       # resolved automatically
    pose=Pose.from_xyz(0, 0, 0),
    use_fixed_base=True,
    sim_core=sim,
)

Agent.from_urdf() calls resolve_urdf() internally. The name "panda" is looked up in the KNOWN_MODELS registry and resolved to the absolute URDF path from pybullet_data.

2. How `resolve_urdf()` Works

resolve_urdf() searches through tiers in priority order:

Tier	Source	Example names
0 — `local`	`robots/` directory in the project	`arm_robot`, `mobile_robot`, `simple_cube`
1 — `pybullet_data`	PyBullet’s bundled data directory	`panda`, `kuka_iiwa`, `r2d2`
2 — `ros`	ROS install paths (`$AMENT_PREFIX_PATH`)	`ur5e`, `turtlebot3_burger`
3 — `robot_descriptions`	`robot_descriptions` pip package	`tiago`, `pr2`

KNOWN_MODELS is a curated subset of each tier. However, models not in the registry are still resolved automatically — resolve_urdf() falls back to scanning installed packages:

User search paths (add_search_path())
KNOWN_MODELS registry (curated)
Auto-discovery: scans pybullet_data directory by filename stem
Auto-discovery: scans robot_descriptions modules with URDF_PATH
FileNotFoundError

# Works even though "r2d2" is not in KNOWN_MODELS —
# auto-discovered from pybullet_data
resolve_urdf("r2d2")

# Works if robot_descriptions is installed —
# auto-discovered from anymal_b_description module
resolve_urdf("anymal_b")

Tip

Auto-discovery scans lazily and caches results. The pybullet_data scan is fast (cached after first miss). The robot_descriptions scan is slower because it imports each module (which may trigger a git clone on first access).

Direct paths pass through unchanged. Any string containing / or ending in .urdf / .sdf is returned as-is without tier lookup.

from pybullet_fleet.robot_models import resolve_urdf

# Tier 0 — local robots/ dir
resolve_urdf("arm_robot")
# → /path/to/PyBulletFleet/robots/arm_robot.urdf

# Tier 1 — pybullet_data
resolve_urdf("panda")
# → /path/to/pybullet_data/franka_panda/panda.urdf

# Direct path — pass through
resolve_urdf("robots/mobile_robot.urdf")
# → robots/mobile_robot.urdf

3. Listing All Models

Local Models (project `robots/` directory)

Model	Preview
mobile_robot
arm_robot
simple_cube
mobile_manipulator
rail_arm_robot

Third-Party Models

Models from pybullet_data (always available), ROS packages, and robot_descriptions are also registered. Use list_all_models() to check availability.

Name	Tier	Category
`panda`	pybullet_data	Arm
`kuka_iiwa`	pybullet_data	Arm
`xarm6`	pybullet_data	Arm
`husky`	pybullet_data	Mobile
`racecar`	pybullet_data	Mobile
`a1`	pybullet_data	Quadruped
`laikago`	pybullet_data	Quadruped
`aliengo`	pybullet_data	Quadruped
`mini_cheetah`	pybullet_data	Quadruped
`minitaur`	pybullet_data	Quadruped
`wsg50_gripper`	pybullet_data	Gripper
`table`	pybullet_data	Object
`table_square`	pybullet_data	Object
`tray`	pybullet_data	Object
`kiva_shelf`	pybullet_data	Object
`plane`	pybullet_data	Object
`domino`	pybullet_data	Object
`jenga`	pybullet_data	Object
`lego`	pybullet_data	Object
`mug`	pybullet_data	Object
`ur5e`	ros	Arm
`turtlebot3_burger`	ros	Mobile
`turtlebot3_waffle`	ros	Mobile
`fetch`	ros	Mobile Manipulator
`tiago`	robot_descriptions	Mobile Manipulator
`pr2`	robot_descriptions	Mobile Manipulator

Tip

Generate preview images for all models locally with python scripts/capture_model_catalog.py. Output goes to docs/media/models/.

Use list_all_models() to see every registered model with its tier and availability:

from pybullet_fleet.robot_models import list_all_models

models = list_all_models()
for name, info in models.items():
    available = "✓" if info["available"] else "✗"
    print(f"  {name:<20} {info['tier']:<20} {available}")

Or from the command line:

python examples/models/resolve_urdf_demo.py --list

4. Auto-Detecting Robot Capabilities

auto_detect_profile() inspects a loaded robot body and returns a RobotProfile dataclass containing type classification, joint information, and end-effector detection:

from pybullet_fleet.robot_models import auto_detect_profile

# Pass a body_id (int) for already-loaded robots — most efficient
profile = auto_detect_profile(agent.body_id, sim.client)

print(profile.robot_type)          # "arm", "mobile", "mobile_manipulator", or "static"
print(profile.num_joints)          # total joint count
print(profile.movable_joint_names) # names of non-fixed joints
print(profile.ee_link_name)        # detected end-effector link
print(profile.joint_lower_limits)  # per-joint lower limits
print(profile.joint_upper_limits)  # per-joint upper limits

auto_detect_profile() also accepts a URDF path string — it will load the robot temporarily, inspect it, and remove it. Prefer passing body_id (int) when the robot is already spawned to avoid the load/remove overhead.

5. Using Third-Party Models

Registered models (in `KNOWN_MODELS`)

Models listed in KNOWN_MODELS can be loaded by name:

# Tier 1 — pybullet_data (always available)
agent = Agent.from_urdf(urdf_path="panda", pose=Pose.from_xyz(0, 0, 0),
                        use_fixed_base=True, sim_core=sim)

# Tier 2 — ROS (requires package installed)
agent = Agent.from_urdf(urdf_path="ur5e", pose=Pose.from_xyz(0, 0, 0),
                        use_fixed_base=True, sim_core=sim)

# Tier 3 — robot_descriptions (requires pip install)
agent = Agent.from_urdf(urdf_path="tiago", pose=Pose.from_xyz(0, 0, 0),
                        sim_core=sim)

Run resolve_urdf_demo.py --list or call list_all_models() to see all registered names and their availability.

Auto-discovery of unlisted models

KNOWN_MODELS is a curated set, but models not in the registry are still usable by name — resolve_urdf() automatically scans installed packages as a fallback:

# "r2d2" is NOT in KNOWN_MODELS, but exists in pybullet_data
# → auto-discovered on first call, then cached
agent = Agent.from_urdf(urdf_path="r2d2", pose=Pose.from_xyz(0, 0, 0),
                        sim_core=sim)

# "anymal_b" is NOT in KNOWN_MODELS, but robot_descriptions has it
# (requires: pip install robot_descriptions)
agent = Agent.from_urdf(urdf_path="anymal_b", pose=Pose.from_xyz(0, 0, 0),
                        sim_core=sim)

Auto-discovery works by:

Scanning pybullet_data directory for {name}.urdf / {name}.sdf (fast, cached)
Scanning robot_descriptions for {name}_description module with URDF_PATH (slower, lazy-loads)

Use discover_models() to see all discoverable models from a tier:

from pybullet_fleet.robot_models import discover_models

# All ~1100 URDFs in pybullet_data
pb_models = discover_models("pybullet_data")
print(f"{len(pb_models)} models in pybullet_data")

# All ~87 URDF models in robot_descriptions
rd_models = discover_models("robot_descriptions")
print(f"{len(rd_models)} models in robot_descriptions")

When auto-discovery isn’t enough

For ROS packages or models whose filename doesn’t match the desired name, you can use direct paths or register_model():

# Option A: Direct file path
import pybullet_data
path = f"{pybullet_data.getDataPath()}/kuka_iiwa/model_vr_limits.urdf"
agent = Agent.from_urdf(urdf_path=path, sim_core=sim)

# Option B: register_model() for reusable short names
from pybullet_fleet.robot_models import register_model, ModelEntry
register_model("kuka_vr", ModelEntry("kuka_iiwa/model_vr_limits.urdf", "pybullet_data"))
agent = Agent.from_urdf(urdf_path="kuka_vr", sim_core=sim)

# Option C: ROS package → find via ament_index
from ament_index_python.packages import get_package_share_directory
path = f"{get_package_share_directory('my_robot_description')}/urdf/my_robot.urdf"
agent = Agent.from_urdf(urdf_path=path, sim_core=sim)

Installing `robot_descriptions`

The robot_descriptions package provides 80+ robot URDFs:

pip install pybullet-fleet[models]
# or: pip install robot_descriptions

If the package is not installed, resolve_urdf() raises FileNotFoundError with an install hint.

6. Runnable Demos

Script	What it demonstrates
`resolve_urdf_demo.py`	Three URDF resolution patterns: by name, by direct path, and listing all models
`model_catalog_demo.py`	Visual grid catalog of all registered models from `KNOWN_MODELS`
`robot_descriptions_demo.py`	Using Tier 3 models from the `robot_descriptions` pip package

# Try it:
python examples/models/resolve_urdf_demo.py --robot panda
python examples/models/resolve_urdf_demo.py --list
python examples/models/model_catalog_demo.py

The `--robot` Argument

Most example scripts across the project accept a --robot argument to swap the robot model at runtime. The value is passed to resolve_urdf(), so you can use a registered model name or a direct URDF path — as long as the model is compatible with the demo (e.g., arm models for arm demos, mobile models for mobile demos):

# Arm demos — pass arm models (default: panda)
python examples/arm/pick_drop_arm_demo.py --robot kuka_iiwa

# Mobile demos — pass mobile models (default: husky)
python examples/mobile/path_following_demo.py --robot racecar

# Scale demos
python examples/scale/100robots_cube_patrol_demo.py --robot mobile_robot
python examples/scale/pick_drop_arm_100robots_demo.py --robot kuka_iiwa

# Grid demo has both --robot (mobile) and --arm-robot (arm)
python examples/scale/100robots_grid_demo.py --robot racecar --arm-robot kuka_iiwa

# Model demos — accepts any registered model
python examples/models/robot_descriptions_demo.py --robot pr2

Category	Argument	Default	Alternatives
Arm demos (`examples/arm/`)	`--robot`	`panda`	`kuka_iiwa`, `arm_robot`
Mobile demos (`examples/mobile/`)	`--robot`	`husky`	`racecar`, `mobile_robot`
Scale demos — mobile	`--robot`	`husky`	`racecar`, `mobile_robot`
Scale demos — arm	`--robot`	`panda`	`kuka_iiwa`, `arm_robot`
`100robots_grid_demo.py`	`--robot` (mobile)	`husky`	`racecar`, `mobile_robot`
`100robots_grid_demo.py`	`--arm-robot` (arm)	`panda`	`kuka_iiwa`, `arm_robot`
`resolve_urdf_demo.py`	`--robot`	`panda`	any registered model
`robot_descriptions_demo.py`	`--robot`	`tiago`	any `robot_descriptions` model

7. Custom Search Paths

If your team maintains URDF files in a shared directory (e.g., /opt/company_robots/), you can register it as a search path so resolve_urdf() finds them by name:

from pybullet_fleet.robot_models import add_search_path, resolve_urdf

add_search_path("/opt/company_robots")

# Now resolves to /opt/company_robots/my_agv.urdf
agent = Agent.from_urdf(urdf_path="my_agv", sim_core=sim)

Priority: User search paths are checked before the built-in KNOWN_MODELS registry, so you can shadow a built-in model with a custom version if needed.

Resolution order for name-based lookup:

User search paths (FIFO order) — looks for {name}.urdf or {name}.sdf
KNOWN_MODELS registry (Tier 0 → 3)
Auto-discovery: pybullet_data file scan (cached)
Auto-discovery: robot_descriptions module scan
FileNotFoundError

API

Function	Description
`add_search_path(directory)`	Register a directory. Raises `ValueError` if it doesn’t exist. Idempotent (duplicates ignored).
`remove_search_path(directory)`	Unregister a directory. No-op if not registered.
`get_search_paths()`	Return the current list of user search paths (copy).
`register_model(name, path_or_entry)`	Add a model to `KNOWN_MODELS`. Pass a path string or `ModelEntry`. Use `force=True` to overwrite.
`unregister_model(name)`	Remove a model from `KNOWN_MODELS`. No-op if not registered.
`discover_models(tier)`	Scan an entire tier (`"pybullet_data"` or `"robot_descriptions"`) and return all found models as `{name: path}`.
